Scope of application：Corrosion protection of offshore steel structure, wooden structure, concrete pile foundation and oil pipeline
★ Product introduction
● The coated anti-corrosion sleeve is a specially designed anti-corrosion solution for the heavy corrosion areas in the ocean splash zone and water level fluctuation zone. The monolithic overall structural design, ring strain tension and anti-corrosion thixotropic gel insulate the seawater steel structure from the air and sea water, from which it has excellent anti-corrosion function.
● It can be operated with water on site, with simple installation and long anti-corrosion life, which is the most effective anti-corrosion method in the current ocean splash area
★ system composition
● The outer layer is made of TPU material, with smooth surface and poor adhesion. Marine organisms are not easy to adhere to, impact resistant, and can maintain certain ring stress. The one-piece design of the anti-corrosion sleeve and the flange closed fastening system make it easy to install, quickly, disassemble and replace, and facilitate the inspection of the corrosion of the base material.
● Elastic mesh cloth composed of high-strength fiber in the middle
● The inner layer is composite polyester plate
● Anticorrosive gel containing preservatives and biocides can prevent the surface seawater from eroding the substrate, maintain its activity, control the impact of the external tide, thus giving full play to the advantages of the multi-layer structure of the anti-corrosion sleeve and providing lifetime active anti-corrosion
● Design service life 25 years
● Single piece installation is simple and construction efficiency is high
● Significantly reduce installation costs
● Easy to detect
● Anti-corrosion sleeve suitable for any structure size can be customized
● Suitable for various environments
● It can be applied to low temperature environment with sufficient strength to resist the impact of ice
● It has the functions of lasting holding force, impact resistance, wear resistance, weather resistance and biological pollution prevention
● Green and environmental protection
★ Installation process

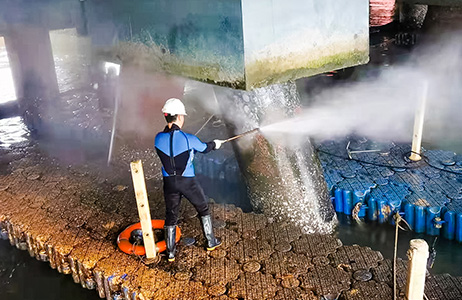

● Clean the marine organisms on the surface of pile foundation manually or with high-pressure water gun according to the cleaning procedure;

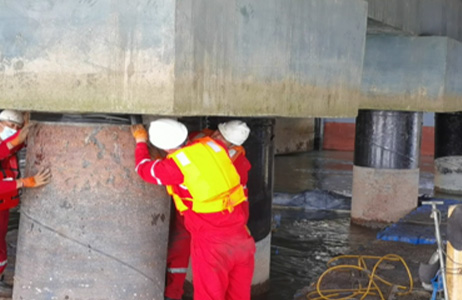

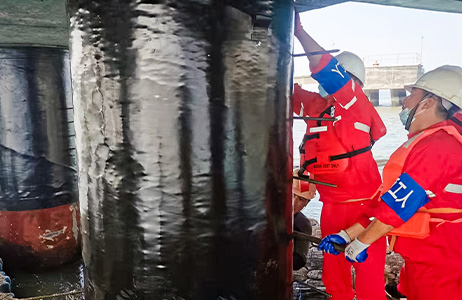

● Wrap the anti-corrosion sleeve on the designated position of the steel pile, bind it, and initially install and fix the screws and nuts;

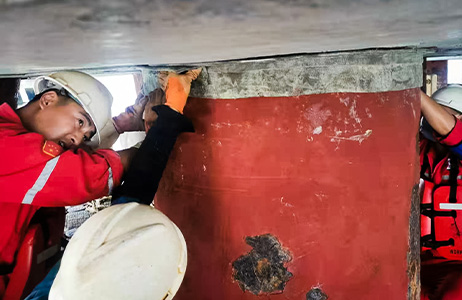

● Use an extended socket wrench and matching wrench, and then tighten the traction bolt until the winding plate is fastened, and the anti-corrosion sleeve is fixed on the structure;
● Tighten all bolts until all plate edges are closed, and tighten the nylon lock nuts;

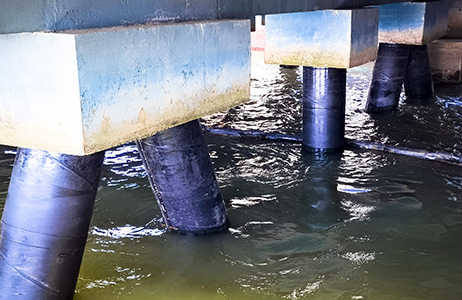

● Installation completed
